單機設備

Stand alone equipment

首頁 > 單機設備 > Rotary filling machine

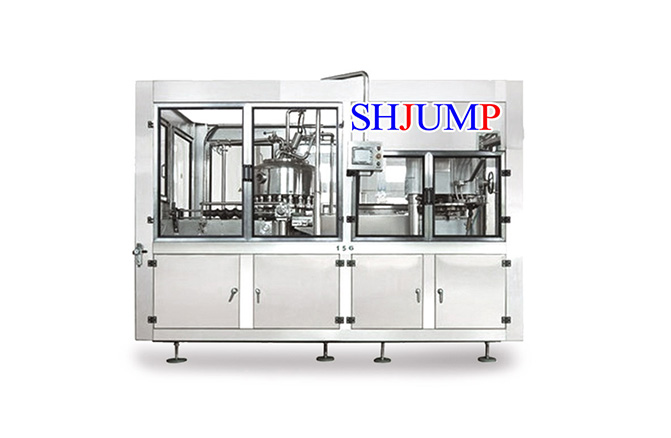

Rotary filling machine

設備描述 working principle technical specification 設備特點 成品展示

設備描述

This series of equipment is used for PET plastic bottles, glass bottles, tinplate cans, cans and other packaging fruit juice jam, dairy production. In one machine to achieve the bottle, filling, capping. The whole machine has scientific and reasonable design, beautiful appearance, complete function and operation. Convenient maintenance, high degree of automation.

working principle

The whole machine adopts the operation mode design of card bottleneck suspension, so as to make the operation function of the whole line more reliable, and overcome the factors of normal operation of the machine caused by thin bottle wall and bottle height error. Easy and quick to change bottle shape.

technical specification

Product Model JP-CGF12-12-5 JP-cGF18-18-6 JP-cGF24-24-8 JP-cGF32-32-10 JP-cGF40-40-12 JP-cGF50-50-15

Output (bottle/hour) 3000 5000 8000-10000 10000-12000 13000-15000 16000-18000

Applicable bottle diameter φ 50-φ 100mm; Bottles of 150-320 - mm; Capacity of 330-1500 ml

Gas consumption (m3/min) 0.2 0.4 0.4 0.5 0.55 0.6

Power (kW) 4.6 5.4 6.4 8.07 9.56 11

Total weight (kg) 2500 3800 5200 6500 8000 11200

Overall size (mm)

2350 * 1700 * 2150

3220×2300×2600 3220×2300×2600 3450×2510 ×2710 3800×2800 ×2710 4510×3400 ×2900

設備特點

The parts in contact with the material are made of high quality stainless steel, and the main electrical components are made of internationally famous manufacturers.

The whole machine adopts PLC computer program control and man-machine interface touch screen button, and equipped with missing cover, overload protection and other alarm devices, can timely find and eliminate faults, high degree of production automation.

The parts in contact with the material are made of high quality stainless steel, and the main electrical components are made of internationally famous manufacturers.

The horizontal rotary pneumatic cap separator has the function of not damaging the surface of the cap and automatically filling the cap when the cap is missing in the hopper.

The magnetic torque type screw cap is used to grasp and screw the cap. Screw cap torque stepless adjustable, tight and reliable sealing.

The introduction of Advanced technology from Germany, Italy and the United States. Isobaric filling principle, fast filling speed, stable liquid level control. The bin is fully enclosed and equipped with CIP interface.

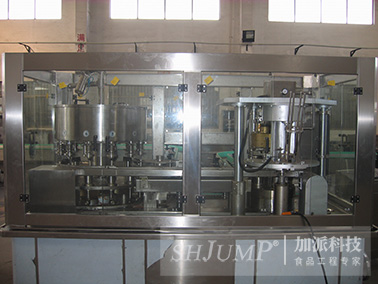

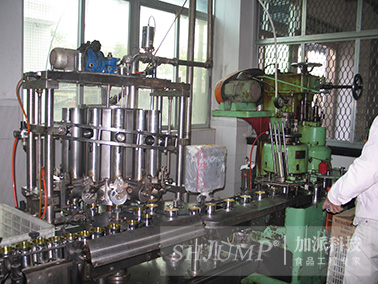

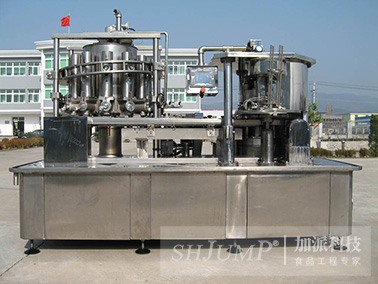

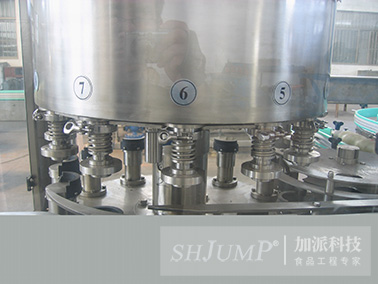

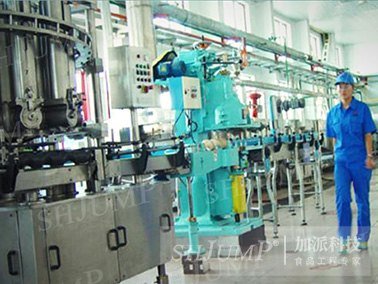

成品展示
