單機設備
Stand alone equipment
設備描述
It is an ideal pre-processing equipment for grape wineries and grape juice processing plants.  Grape terrier is mainly composed of hopper, half screen tube, shaft, feeding trough, crushing device, frame, speed regulating motor, transmission parts and so on.
working principle
Material from the hopper into the coarse crushing studio first, in the coarse crushing studio is broken by the screw conveying shaft to the coarse screening machine, due to the continuous rotation of the coarse screening machine, making some fine materials and seeds from the screen hole into the subdivision screen beater.  Under the action of subdivision screen beater, juice and seeds are separated, juice is collected by the pulp bucket, seeds are discharged from the seed bucket;  The coarse material is transported to the fine crushing chamber for further crushing to improve the juice yield.
technical specification

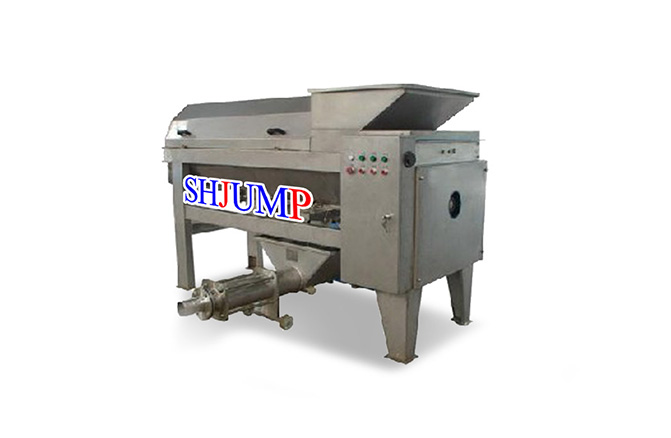

Product Name Deseller (crushing) machine

Device model JPWM-1000

Main material food grade SUS304 high quality stainless steel (or according to customer requirements)

Processing capacity 0.5 tons/hour to 15 tons/hour (or customized according to customer requirements)

Dimensions and specifications are customized according to customer requirements

The equipment should be used to remove stem with stem fruits and vegetables (crushing function can be added)

Application scope Grape, raisin, cherry and other fruits and vegetables with stem

設備特點
The slurry pump is a single screw pump, installed at the lower part of the crushing device
The products are made of high quality stainless steel, the crushing device is located at the lower part of the destalk rotary screen, the crushing roller is made of high elastic non-toxic rubber, the crushing device and the body are connected in a fast open way

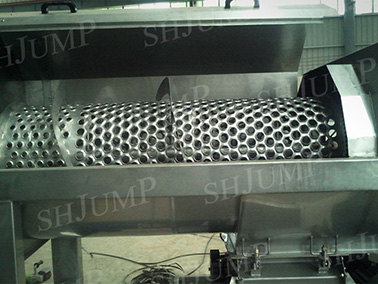

The shaft and the sieve can realize stepless speed regulation, the length of the sieve has been lengthened, can adapt to a variety of grape varieties, fruit with less fruit in the fruit outside the discharge machine
Screw feed. Stem removal before crushing
成品展示
