單機設備
Stand alone equipment
設備描述
Shanghai Jiapai machinery Technology Co., Ltd. produces aseptic filling of fruit juice, jam, dairy products and biological pharmaceutical preparations. The filling method adopts aluminum plastic compound aseptic bag of 5L ~ 220L.  Based on the Italian aseptic filling machine upgrade, divided into single head and double head.  Siemens PLC and touch bottle automatic control, stable operation of equipment, accurate measurement, easy to operate.  The whole filling process is carried out in aseptic environment, which fully ensures the safety of materials.  The filling head can move in three-dimensional coordinate mode, avoiding the disadvantages of high energy consumption and serious instability brought by the traditional lifting platform;  Material tube stainless steel live connection, imported food grade double sealing ring, to avoid the traditional soft connection products containing plastic mud and unqualified quality.  The bag pliers adopts special transmission device to avoid cover breakage and damage caused by inaccurate displacement caused by traditional gear transmission.
working principle

Aseptic sack filler is mainly composed of aseptic filling head, operating system, man-machine control system, steam system, measuring system and workbench and so on, with independent control cabinet and simple button box, touch screen and programmable controller (PLC) USES Germany Siemens, solenoid valve and cylinder, a guest is used, use schneider switch button;  The measuring system adopts siniere electromagnetic flowmeter and aluminum-plastic compound aseptic bag (5L-220L).

Aseptic bag filling machine sterilizes the bag opening and filling chamber using steam injection method to ensure that the filling chamber is always in aseptic state. Aseptic bag opening sterilization, filling and sealing are completed in aseptic environment.  Double the filler filling head switching are two filling, filling material zero reflux (such as first in filling at the same time, the two do bag, bag after the completion of the injection steam sterilization on the bag mouth, for the first filling end, aseptic filling valve switch to the first two), with CIP cleaning equipment, SIP sterilizing process, can realize with the front end of the sterilization machine,  No need for separate cleaning and sterilization.

technical specification

產品型號

JP-WJGZ-1

JP-WJGZ-2

JP-WJGZ-3

JP-WJGZ-6

JP-WJGZ-8

JP-WJGZ-10

JP-WJGZ-12

灌裝能力

1000 kg/h

2000 kg/h

3000 kg/h

6000 kg/h

8000 kg/h

10000 kg/h

12000 kg/h

灌裝頭數

1

1

1

2

2

2

2

設備功率

4.5 kw

4.5 kw

4.5 kw

7.5 kw

7.5 kw

7.5 kw

7.5 kw

蒸汽耗量

100 kg /h

100 kg /h

100 kg /h

200 kg /h

200 kg /h

200 kg /h

200 kg /h

壓縮空氣

0.3 kg/h

0.3 kg/h

0.3 kg/h

0.6 kg/h

0.6 kg/h

0.6 kg/h

0.6 kg/h

設備尺寸

2700*1800*2800mm

2700*1800*2800mm

2700*1800*2800mm

4200*1800*2800mm

4200*1800*2800mm

4200*1800*2800mm

4200*1800*2800mm

設備特點
Independent control cabinet, PLC+ touch screen man-machine interface automatic control system.
The unique design of filling chamber can avoid leakage of condensed water.
The valve and the moving parts of the filling head are protected by steam barrier, and the filling chamber is sterilized by steam.
Equipped with manual and automatic control system.
Man-machine interface control, weight real-time display and control, weight measurement deviation within 1%.
The filling head can go up and down automatically according to the weight.
Upgraded on the basis of Italian equipment, including double aseptic filling machine can be continuous filling; And sterilization machine online control, CIP and SIP.
Food grade SUS 304 high quality stainless steel.

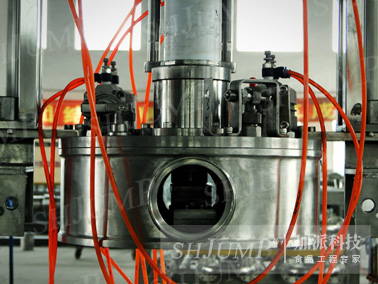

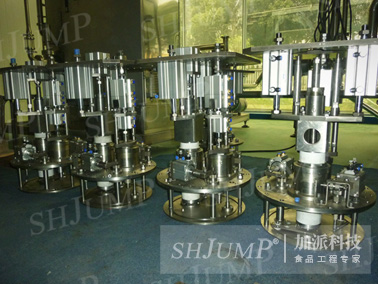

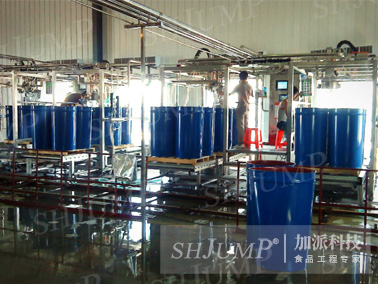

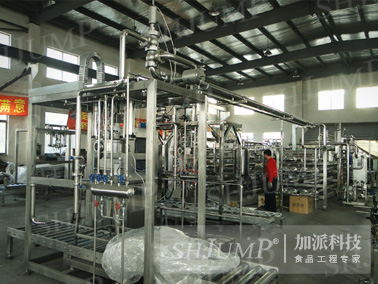

成品展示
