單機設備
Stand alone equipment
設備描述
The equipment is all made of high quality stainless steel, is composed of two columns, is a single layer of stainless steel welding structure, internal and external surface polishing, the top is equipped with a vent valve, in order to work with the vent.  The pipe joint adopts expansion and closing connection, after 0.3mpa water pressure test, the three-way external thread cock opens and closes flexibly, the equipment is compact in structure, convenient in operation and simple in maintenance.  The two filters can be used alternately, and the filter cloth can be replaced without stopping. The mesh size of filter can be customized according to user requirements, which is suitable for long-term continuous use in fruit and vegetable processing plants.
working principle

Double filter USES the two three-way ball valve, the two monocular filter assembly on a stand, don't have to stop when cleaning filter, ensure the continuous work, it is not preferred parking line filter, filtering element of this filter, in addition to the stainless steel filter, may also have quality honeycomb degrease cotton fiber, can filter out particles of the particle size of more than 1 mu,  The filter can also be used in a single cylinder, at this time, just remove the common frame, the rest of the size unchanged.

The inner and outer surface of the double filter is polished, and the filter cylinder is equipped with stainless steel filter screen and screen support basket;  The top is equipped with a vent valve for discharging the air in the filter when filtering.  The connection between the upper cover and the filter cylinder adopts quick-opening structure, which is more convenient to clean (replace) the filter screen. Three adjustable legs can make the filter be placed on the ground smoothly.  The connecting pipeline adopts live connection or clamp connection mode, and the inlet and outlet valve adopts three-way ball valve to open and close, which is pressure-resistant and temperature-resistant, flexible and convenient operation, and more sanitary without liquid leakage.

technical specification

Device Name Dual filter

Equipment model JP-DF series

Main material food grade SUS304 high quality stainless steel (or according to customer requirements)

The processing capacity is customized according to the scale of customer production line

Dimensions and specifications are customized according to customer requirements

The equipment is used to purify invisible solid impurities in materials

Scope of application for dairy, jam, fruit juice drinks

設備特點
Easy to operate and so on
Low cost of use
The filter speed is fast
The large amount of sludge

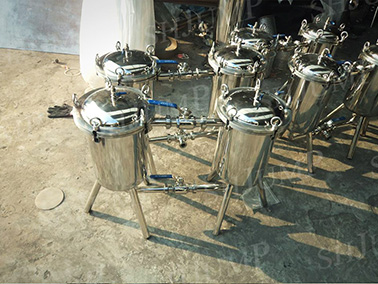

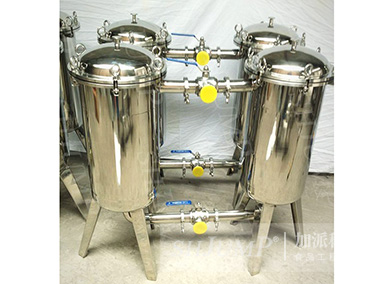

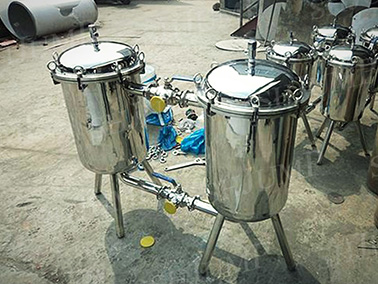

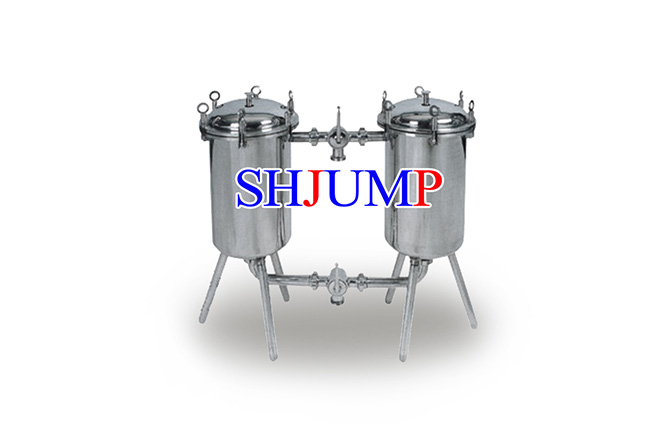

成品展示
