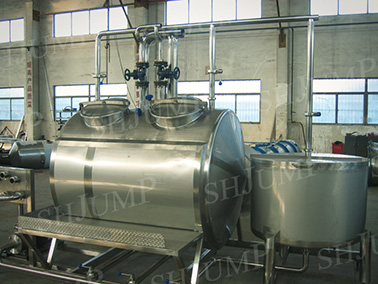

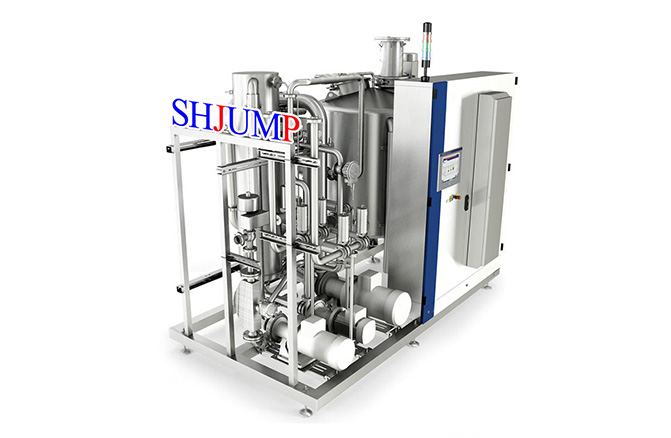

CIP cleaning equipment

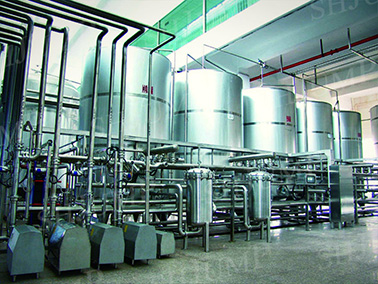

Automatic CIP cleaning system refers to the equipment (tank, pipe, pump, valve, etc.) and the whole production line in the premise of no manual disassembly, in the closed loop for cyclic cleaning. The system adopts Siemens PLC automatic control, with color touch screen operation display the whole production process and the control parameters, plate heat exchanger online heating, acid and alkali concentration detection, high and low level, control valve adopt high-quality products, realize the full automation of operation and control.
The main equipment of the system includes:

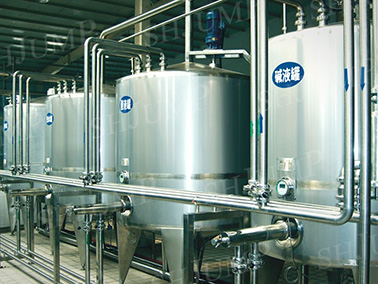

CIP cleaning liquid storage tank (acid tank, alkali tank, hot water tank, clean water tank);
Two concentrated acid/alkali single layer storage tanks;
CIP process pump and CIP return pump;
Two concentrated acid/lye diaphragm pumps;
Heat exchanger (plate/tube);
An electrical control box;
A group of control pipe valve;
A set of self-executing components and electrical materials;
CIP cleaning liquid storage tank: 1000L-10000L;
According to customer needs, the system can be made into double loop, three loop, four loop, etc., and multiple cleaning loops can be carried out at the same time;
Heating mode can be: plate type, calculation type, tube type.
