單機設備
Stand alone equipment

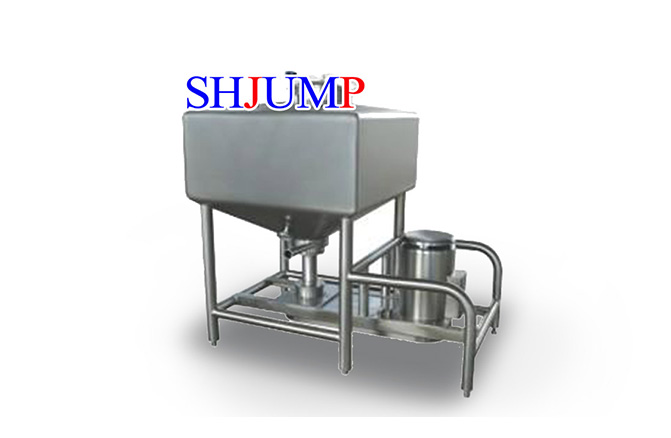

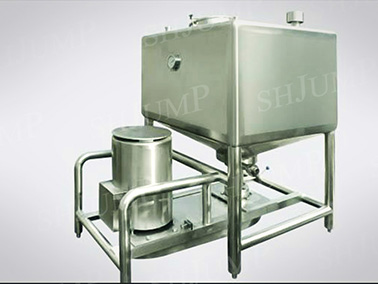

設備描述
This equipment adopts high speed at the bottom of the impeller rotation, make the material under the action of mixing, extruding and shearing physical mix quickly and efficiently, particularly suited to the sugar, starch, milk powder, egg powder products and emulsifier and stabilizer, thickener, are usually in formula milk powder, yogurt, beverage, ice cream, egg roll and waffles ingredients used in the process.
working principle
Shear head using claw, bidirectional suction structure, to avoid the upper material is difficult to inhale caused by the phenomenon of dead Angle and vortex, high-speed rotating rotor produces strong shear force, so that the shear rate is higher, shear force is stronger.  Under the action of centrifugal force produced by the rotor, the material is thrown from the radial direction into the narrow and precise gap between the rotor, and at the same time by centrifugal extrusion, impact and other forces, so that the material is fully dispersed, mixed, emulsified.
technical specification
有效容積L 筒體體長A(mm) 筒體體寬B(mm) 筒體體高C(mm) 總高H(mm) 保溫層 電機功率 攪拌速度(r/min)
400 900 900 550 1700 50 7.5 1460
600 1000 1000 650 1850 50 11 1460
800 1050 1050 750 1950 50 15 1460
1000 1150 1150 750 2000 50 15 1460
1500 1250 1250 1000 2300 50 18.5 1460
設備特點
At the bottom of the mixing seal structure of the continuous technical transformation, greatly prolong the service life of the mechanical seal and bearing and save a certain cost for customers
In structural design, we use R arc transition, to ensure no dead Angle health
成品展示
