單機設備
Stand alone equipment
設備描述
Suitable for yoghurt and lactobacillus beverage mother liquor fermentation, brewing, seasoning, pharmaceutical, chemical and fungal cultivation, its function can be heated, heat preservation and cooling, it is a fully closed sanitary fermentation special equipment.
working principle
Seed tank is using high speed rotating liquid distribution into a uniform film by evaporation or distillation of a highly efficient evaporation, distillation equipment, can also be used for deodorization, deaeration reaction and heating, cooling unit operations, such as small experiment digestion tank can be widely applicable to the Chinese and western pharmaceutical, food, light industry, petroleum, chemical industry, environment protection, etc.
parameter of apparatus
型號 JP-Z JP-Z JP-Z JP-Z JP-Z
600 1000 1200 1500 2000
類別 容器內
容器內 設計壓力（MPa） 常壓
設計溫度（℃） 15~126
試驗壓力（MPa） 常壓
主要材料 1Cr18Ni9Ti
貯存介質 溶化糖液
容積（L） 600 1000 1200 1500 2000
夾套內 內徑 1000 1100 1200 1300 1500
設計壓力（MPa） 0.4
設計溫度（℃） 142
試驗壓力（Mpa） 0.6
主要材料 1Cr18Ni9Ti
貯存介質 水、蒸汽
電動機功率（KW） 0.4 0.75 1.1 1.75 2.2
外形尺寸 1500×1150×1700 1620×1280×1800 1650×1300×2000 1750×1550×2200 1850×1650×2400
重量（Kg） 550 725 800 850 1000
設備特點
The upper and lower connection of the tank cover is made of stainless steel stud, and the sealing gasket is made of XB250 non-toxic rubber
The stirrer and the pot cover are sealed by mechanical seals
Skin, polished fish scale pattern, using high quality 304, 1Cr18Ni9Ti material
The jacket and stiffener are made of A 3 plate, and the insulation layer is made of glass asbestos
Tank liner and head are made of high quality polished stainless steel
The fixed form is mainly composed of tank body and support feet

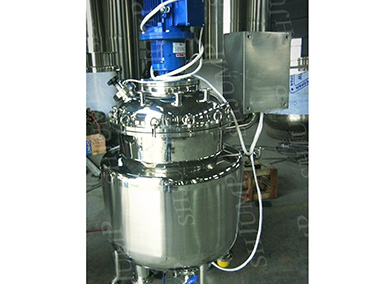

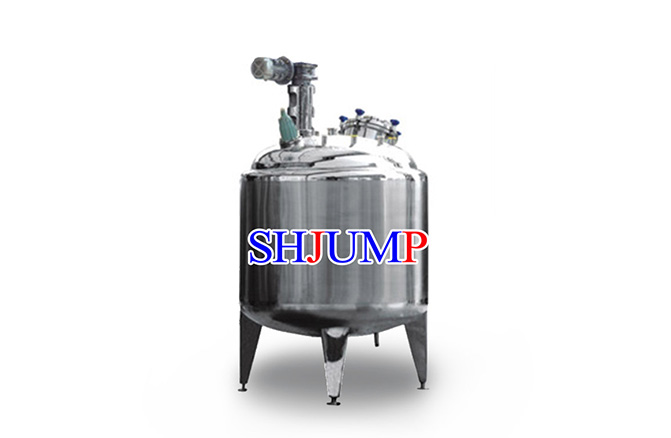

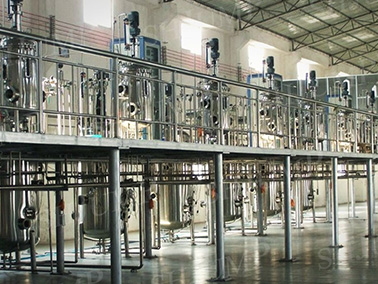

成品展示
