單機設備
Stand alone equipment
設備描述
Fruit and vegetable beater produced by our company, on the basis of fully learning the design principle of international equipment such as Italy, we have made our country's advanced working principle and high manufacturing precision beater refining machine.  It has the characteristics of high pulping rate, easy operation, large production capacity and stable performance.  It is mainly suitable for beating, peeling and removing seeds of fruit and vegetable materials such as tomato, peach, apricot, mango, apple, kiwi fruit, strawberry and hawthorn to achieve the purpose of pulp residue separation.  Our company integrates the unique Italian cone mesh structure, which can effectively improve the juice rate of the original juice by 2%-3%.  Customers can choose single channel beater or double channel beater according to their own needs, and according to the process requirements to customize the size of the screen beater.
working principle
The motor drives through the belt, so that the scraper installed on the spline shaft rotates at high speed. When the broken fruit enters the machine through the feeding port, the pulp plate evenly distributes the material to the scraper and screen.  Due to the rotary action of the scraper and the existence of the lead Angle, so that the material along the cylinder to the export end of the movement, the trajectory of the movement is spiral, the material is in the process of moving between the scraper and the sieve tube by centrifugal force and be scraped, juice and meat (has become pulp) from the sieve hole through the next process into,  (double beater for linkage repeat the above process) the skin and seeds are discharged from the slag hopper, in order to achieve the purpose of automatic separation.  As long as the change of different specifications of the screen and adjust the size of the lead Angle of the scraper, different beating speed can be changed to obtain satisfactory results.
technical specification
產品型號 生產能力 孔徑(mm 額定功率 產品尺寸
定制 定制 定制 定制 定制
JP-DJ-S-5T 5 噸/小時  0.6 7.5 1650×600×550
JP-DJ-S-10T 10 噸/小時  0.8 15 1650×700×600
JP-DJ-S-15T 15 噸/小時  1.0 18.5 1650×800×700
設備特點
Parts in contact with materials are made of high quality stainless steel, in line with food hygiene.
It can be combined in the production line or single production.
Automatic separation of slurry and slag.

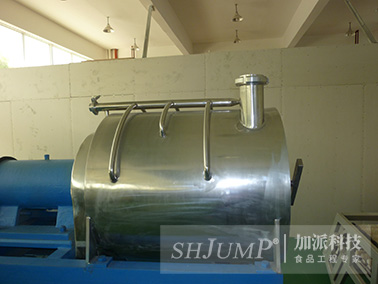

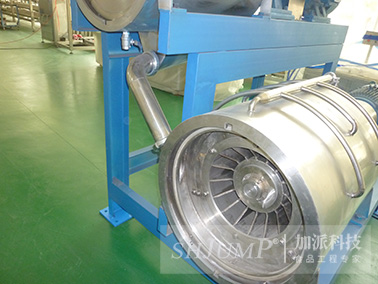

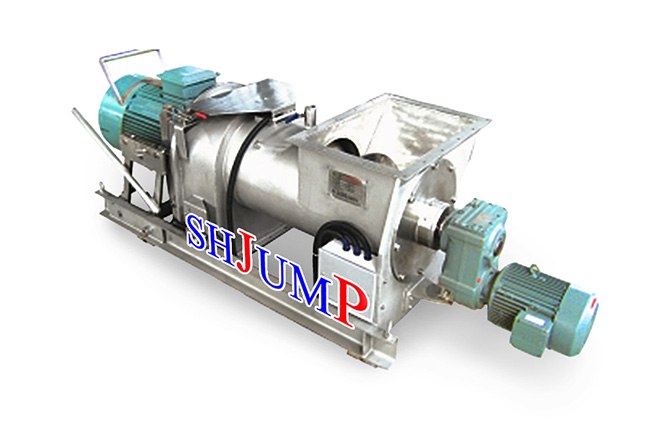

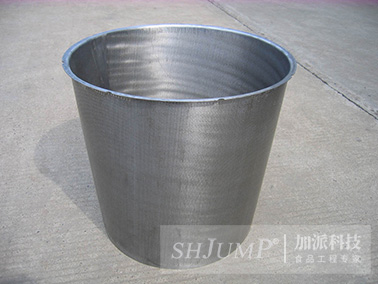

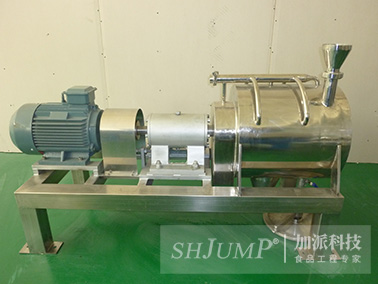

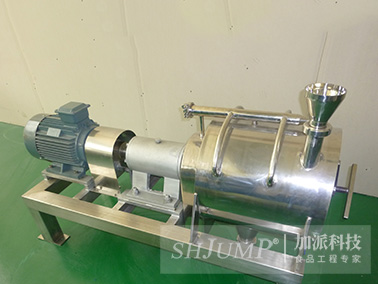

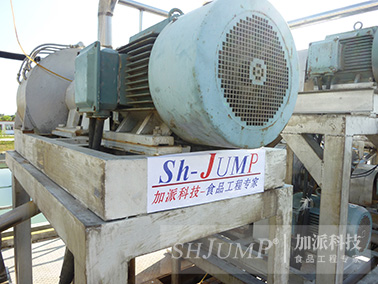

成品展示
