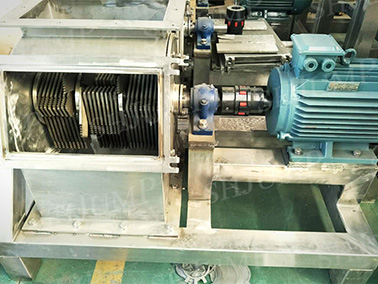

The main machine is composed of door, hammer, screen, spindle, fuselage and other parts;

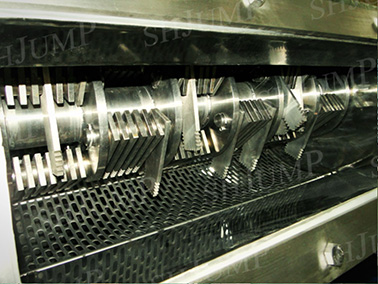

The machine includes in and out of the hopper, host, frame, transmission parts and so on. When working, the motor drives the spindle at a high speed by a pair of pulley, and the spindle is equipped with 3 groups of several hammer pieces. The material falls into the hopper freely from the lifting machine and is chopped by the high-speed rotating hammer. Due to the effect of centrifugal force, the crushed material particles fall into the hopper by the waist-shaped sieve hole, and then is pumped into the next process by the screw pump.

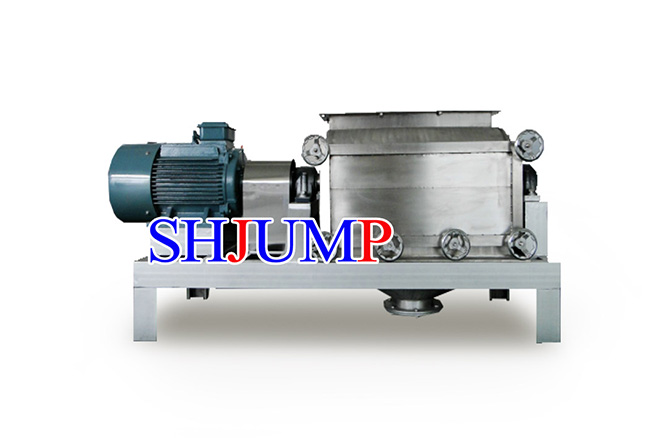

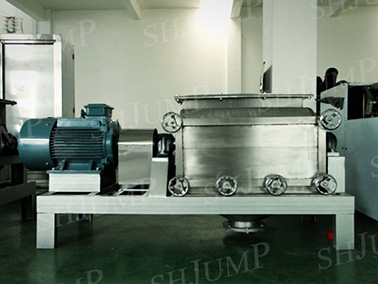

Hammer type fruit and vegetable crusher
Device model JPCM-100
Main material food grade SUS304 high quality stainless steel (or according to customer requirements)
Processing capacity 0.5 t/h to 30 t/h (or customized according to customer requirements)
Dimensions 1250*500*700 to 6500*1600*900 (mm)
The equipment is suitable for crushing fruit and vegetable raw materials
Application scope apple, pear, carrot, potato and other fruit and vegetable raw materials
