單機設備
Stand alone equipment
設備描述
Water bath sterilizer is mainly used in fruit and vegetable processing.  The equipment is set with double mesh belt, which can effectively press blanched vegetables completely in hot water, so that vegetables can be blanched evenly.  The speed of the net belt can be adjusted uniformly.  The equipment is equipped with pneumatic Angle seat valve. When the temperature in the ironing pool decreases, steam will be automatically added.  When the temperature in the blanching pool reaches the set temperature, it automatically closes to save energy.  The equipment is suitable for the pre-cooking process of fruits and vegetables, with the characteristics of good temperature control, high efficiency and labor saving.  The equipment inhibits enzyme and protects color and dehydrates and cools in time to keep the original natural color of fruits and vegetables.
working principle
The machine is made of SUS304 stainless steel and heated by steam or heat conduction oil.  The upper and lower parts of the equipment are equipped with a net belt to ensure that the material soaked in the ironing pool, the equipment is equipped with a circulating pump to make the ironing pool water flow up to ensure that the water temperature in the pool uniform.  The tank body of the blanching pool is provided with an insulation layer to reduce heat loss.  The upper end of the equipment is provided with a steam outlet from which excess waste gas is discharged.  The upper cover is provided with a lifting device to facilitate internal cleaning, and the lower end is provided with a sewage outlet to facilitate equipment cleaning.  After blanching, the material is transported to the cooling pool for cooling through the net belt.
technical specification

Water bath pasteurization machine

The device model is JPSY-1000

Main material food grade stainless steel plate SUS304(or according to customer requirements)

Processing capacity 3 tons/hour to 10 tons/hour (or customized according to customer requirements)

Dimensions 5000×2950×2600 to 5000×2950×2600 (unit: mm)

The equipment is suitable for the thorough cleaning of fruit and vegetable raw materials

Applicable to all fruit and vegetable raw materials, can be customized

設備特點
Temperature, blanching, water control time automatic adjustment setting control, automatic feeding, mixing, turning, water control, cooling, discharging process automatically completed.
Completely solve the blanching process because of the low degree of automation caused by the "randomness" to strengthen the "consistency", greatly improve the success rate of blanching.
The whole mesh belt conveyor, fully control stainless steel mesh belt conveyor, the inlet from the filtered water will be pushed to the outlet, to achieve unified water temperature.
The whole machine adopts double layer stainless steel rock wool insulation system to prevent temperature emission and save energy.
The machine is compact in structure, easy to operate, low failure rate, boiler steam or boiler hot water heating method, suitable for continuous blanching.
The machine runs smoothly, stepless frequency conversion speed regulation, low noise, stainless steel mesh belt with high strength, scalability, not easy deformation, easy maintenance.

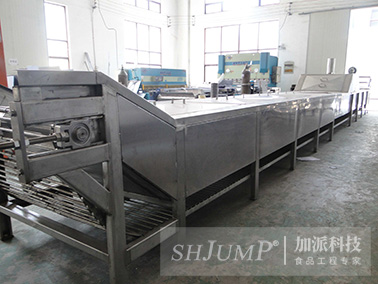

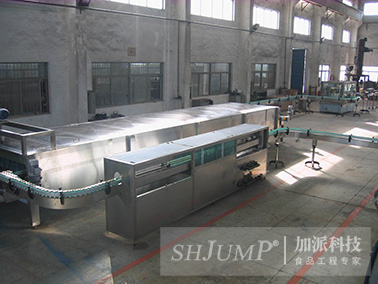

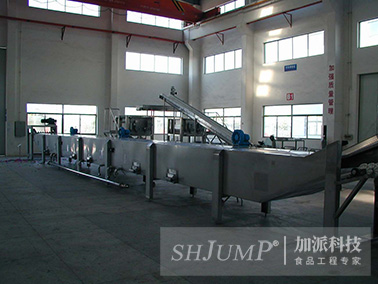

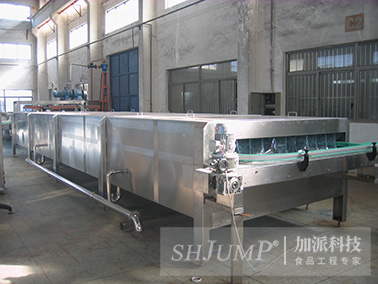

成品展示
